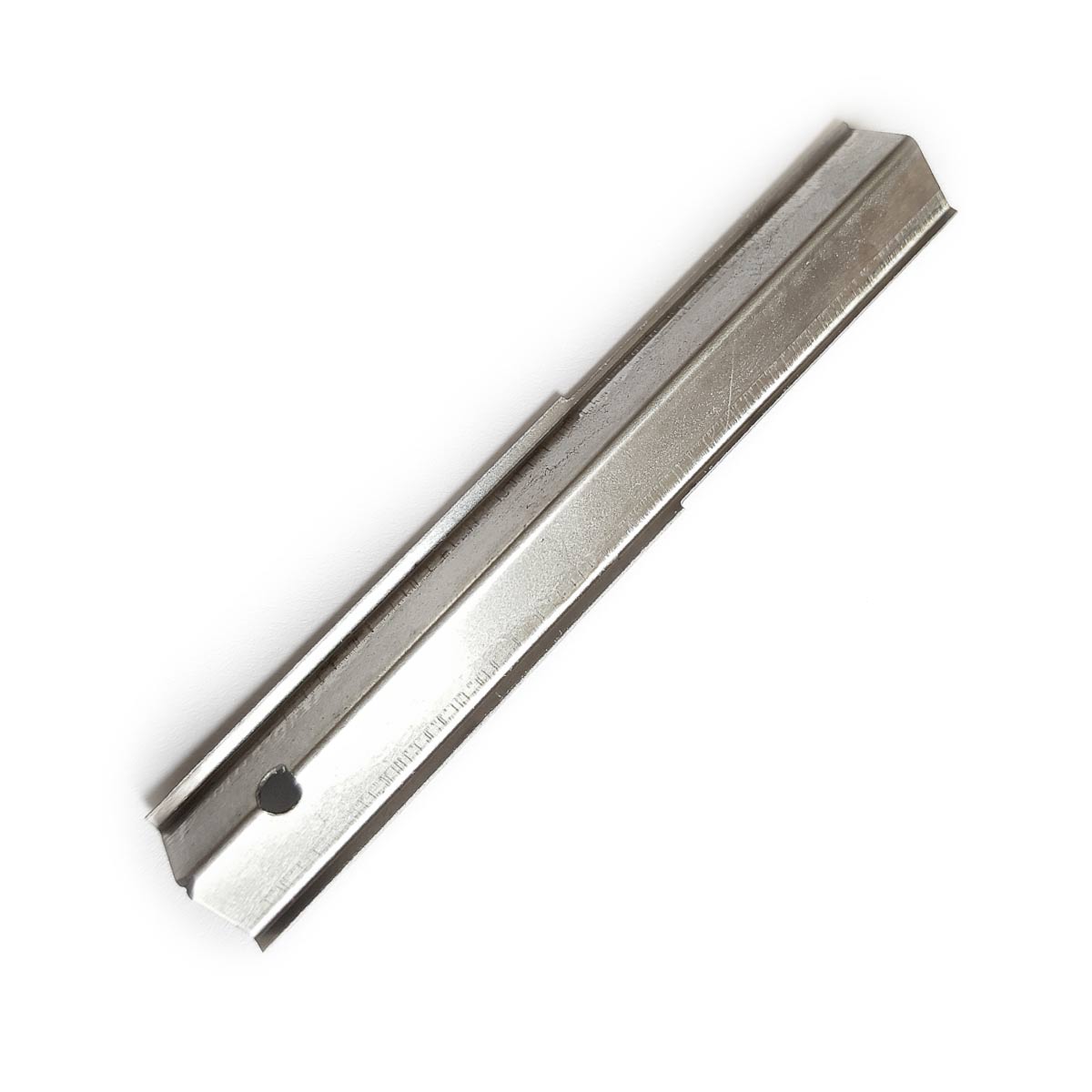

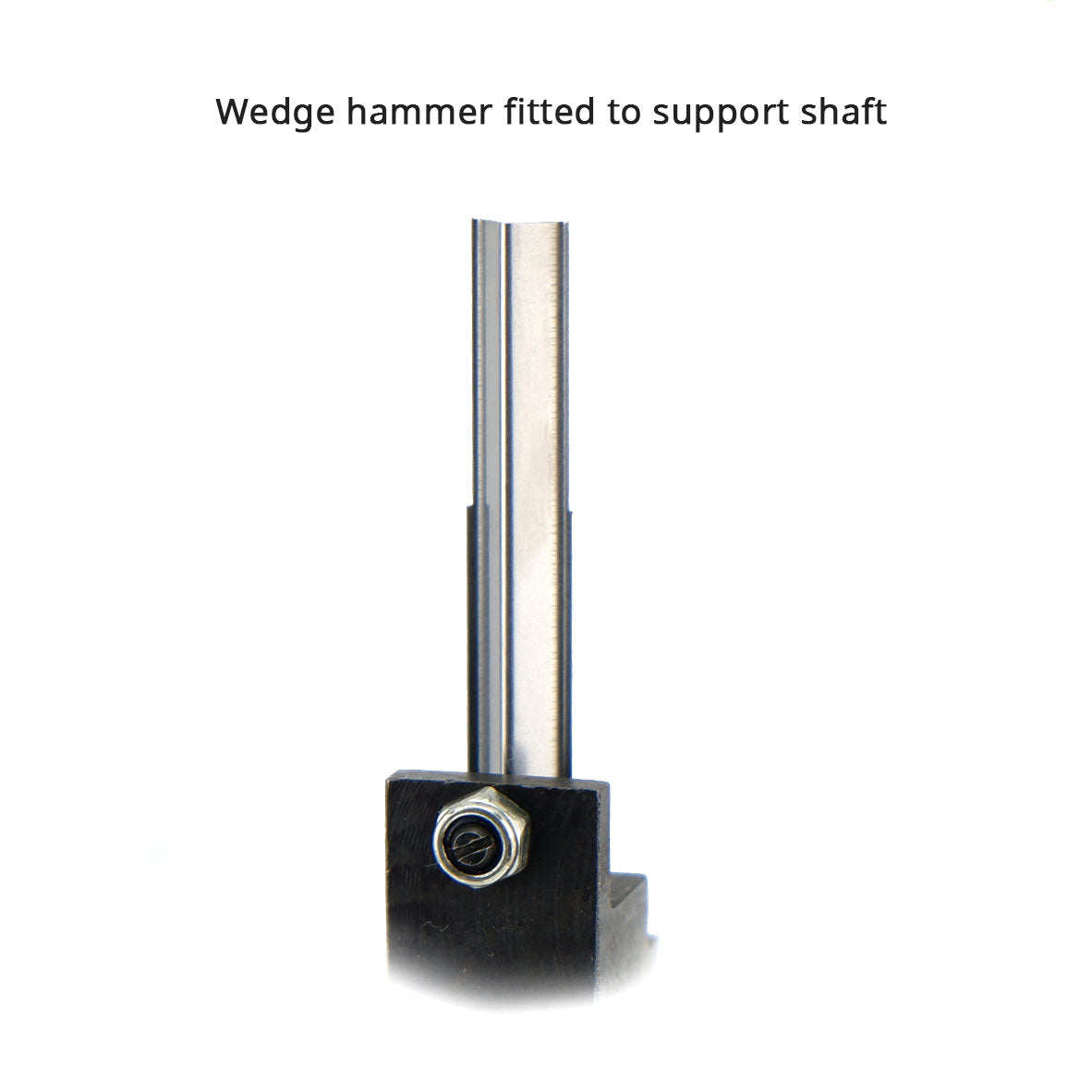

Replacement wedge hammer (driver blade) used by Cassese underpinners to push the wedge into the moulding, always keep at least one spare hammer as these can break at anytime resulting in an unusable underpinner.
Fits most of the newer Cassese models.
(does not fit the cs810, cs276, Cs100, UNI or Pro Turner underpinners)
Cassese p/n: z506 Marteau
£7.00Pad used to apply clamping pressure to the top of the mitred pieces, damaged clamp pads are useless if they have any cuts or tears in the surface as the clamping pressure will not be constant and damaged pads can also mark the top of your mouldings as they are being joined.
Click here to view the Black (hard version)
Different pack size's available:
Cassese p/n: z1813 Presseur blanc

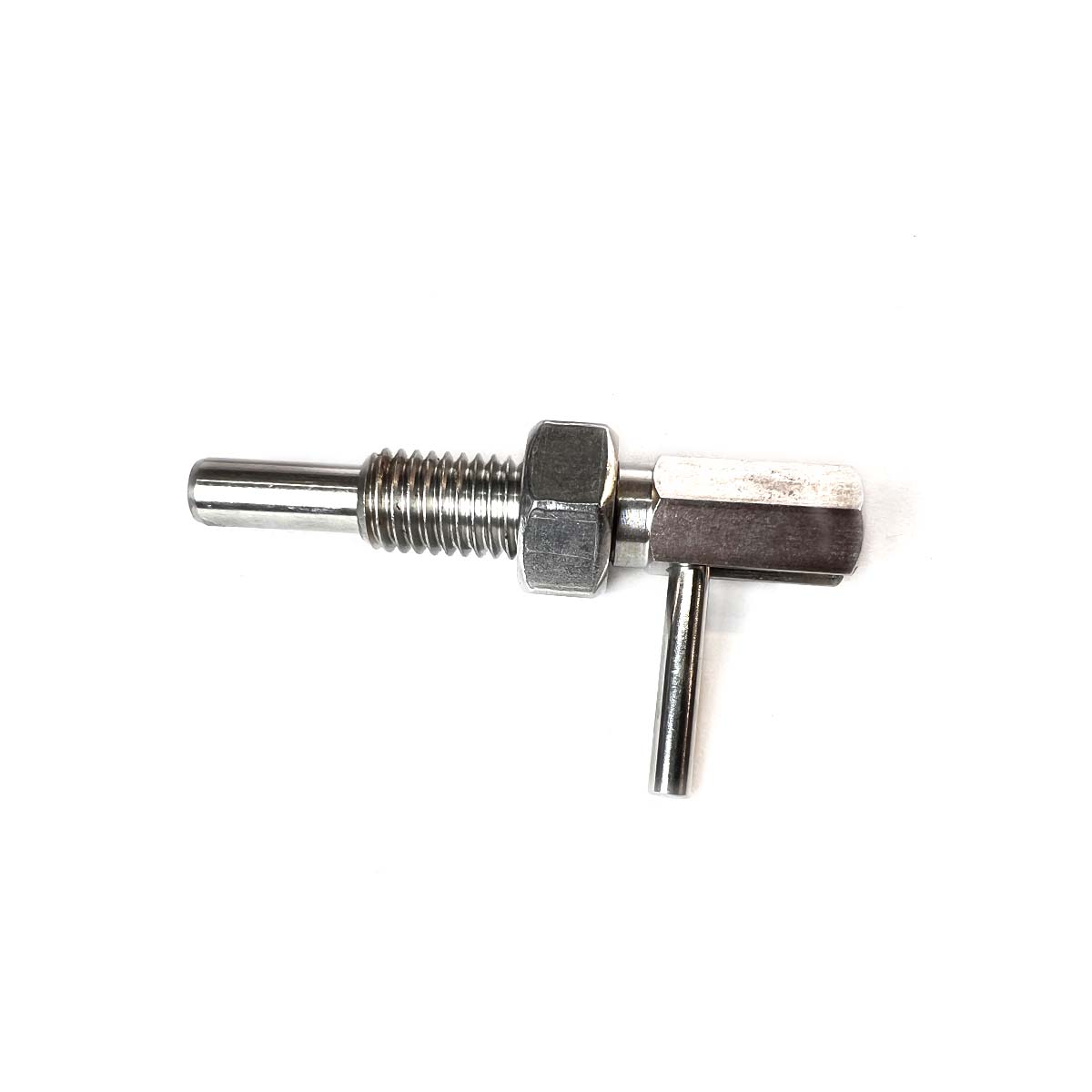

Used on Cassese underpinners to hold the wedge hammer in position / enable easy removal and re-fitting of the wedge hammer. Needs be replaced once a year as the spring loaded ball catch can lose tension causing the wedge hammer to work loose resulting in wedge misfires.
DO NOT over-tighten the ball catch when refitting as this will break the thread and always keep at least one spare as when these do break your Cassese underpinner will be inoperable.
Cassese p/n: z1394 Poussoir A Teton

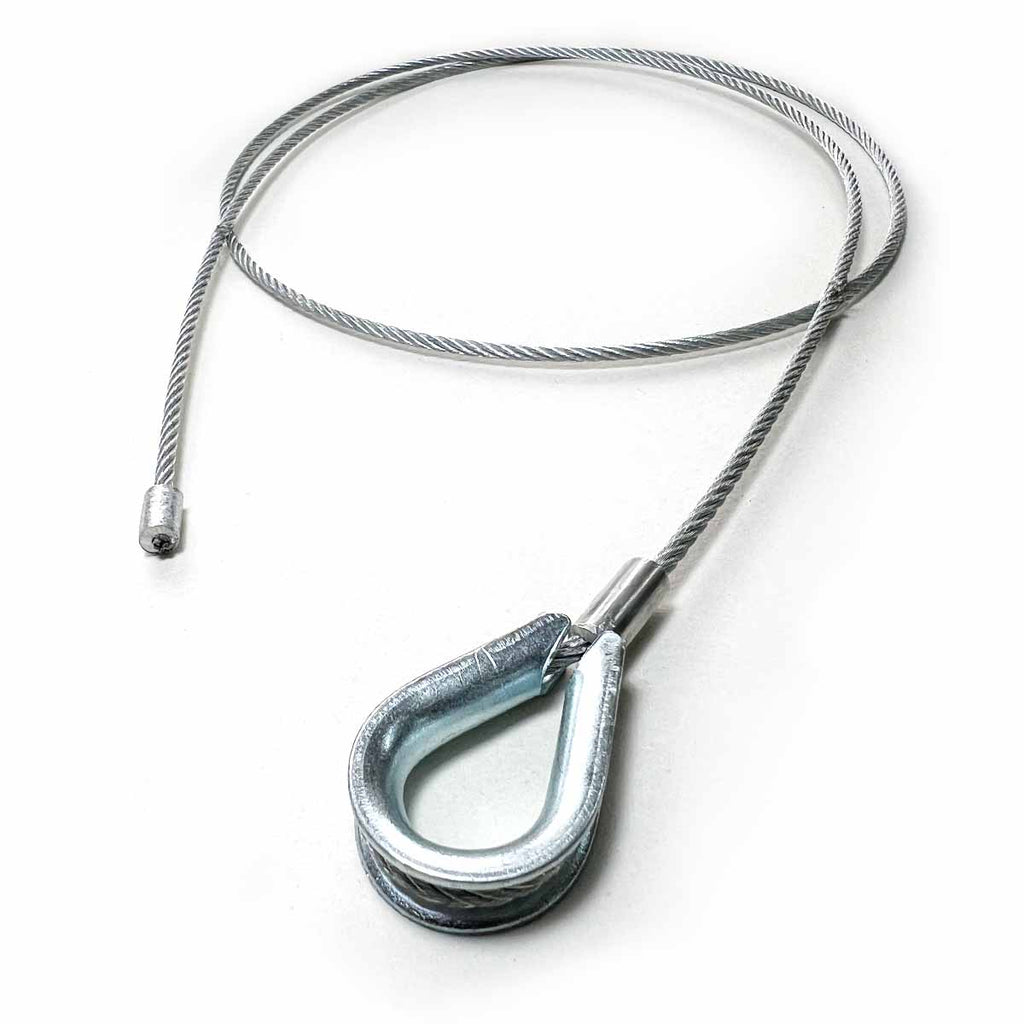

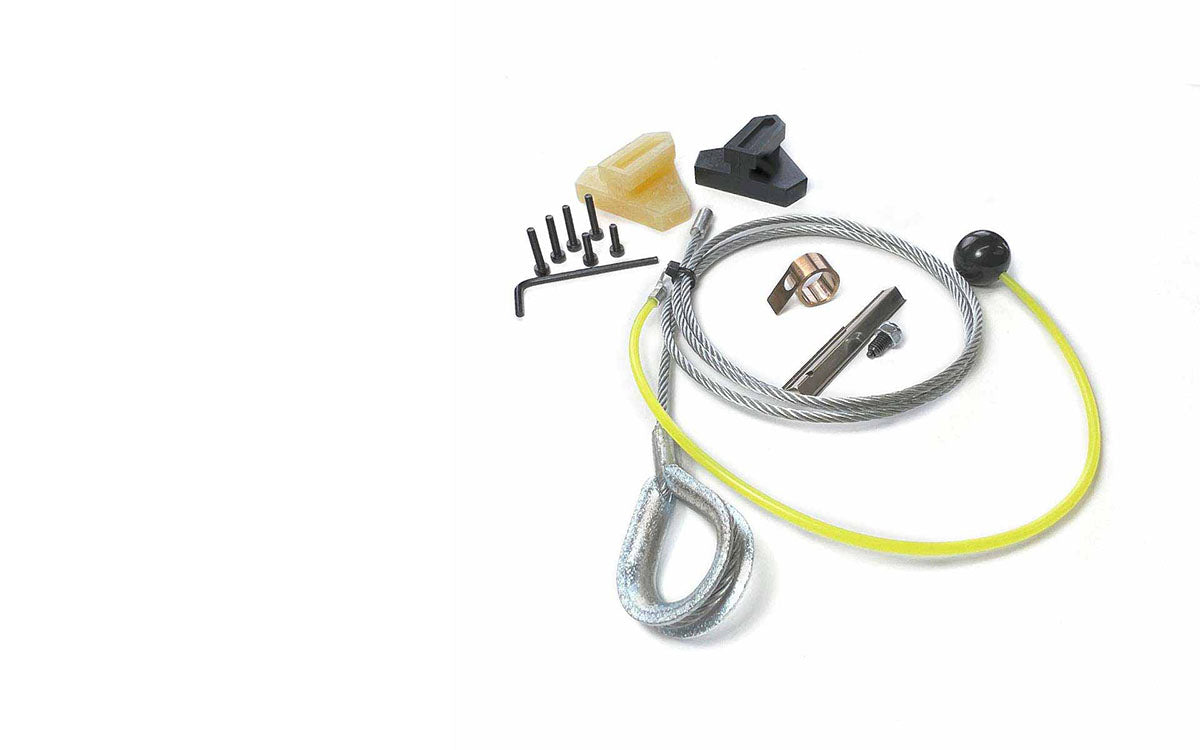

£12.80Steel cable which connects the Cassese Cs88 and Cs1 (one) underpinner foot pedal to the clamping / wedge mechanism, check your cable for any fraying as when these snap your underpinner is inoperable.
Replacement bolt that holds the Morso cutting blades in position, each blade should have 3 of these bolts fitted to ensure the blade cannot move whilst cutting.
Common to see these bolts rounded off making replacing the blades an absolute chore, replace as soon as damage is spotted as this will make future blade changes much easier and much safer.
info: These are not a standard 'off the shelf' bolt as the hex head is a different size ratio to the thread which requires this bolt to be bespoke manufactured - hence the price.

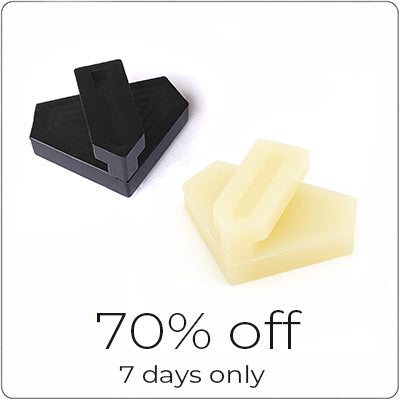

Mixed 5 pack of tri pads used by Cassese underpinners to apply clamping pressure to the top of the mitred pieces, damaged clamp pads are useless if they have any cuts or tears in the surface as the clamping pressure will not be constant and damaged pads can also mark the top of your mouldings as they are being joined.
Packs also available with just White or Black versionsinfo: The white coloured pad is for soft / medium density mouldings, the black version is for hardwoods / mdf.
Cassese p/n: z1814 Presseur Noir - z1813 Presseur Blanc
Replacement motor relay that is located on the main circuit board, easy clip on design.
Typical faults are:

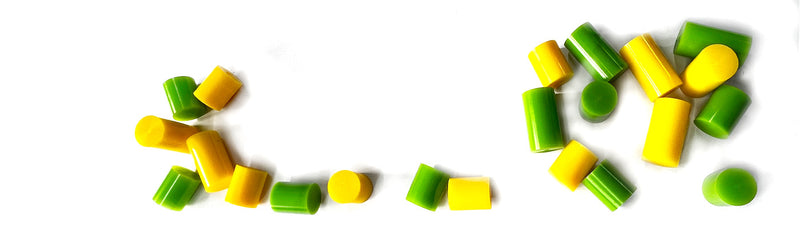

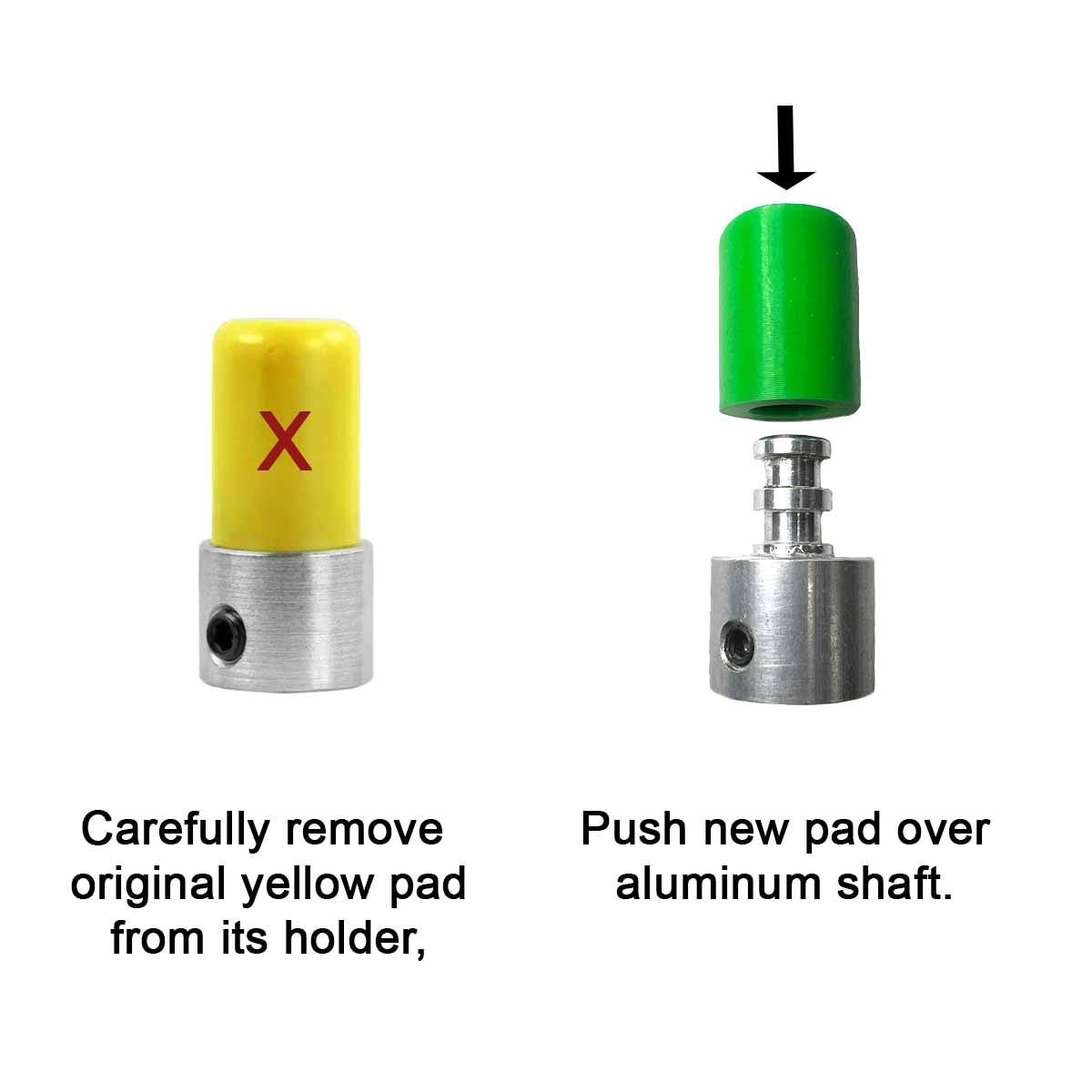

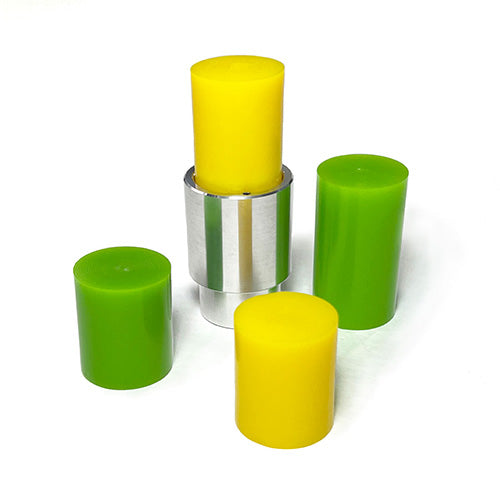

Complete set of clamping bungs / pads for Cassese underpinners. Yellow bungs and white tri pad are for clamping soft / medium density mouldings whilst the green bungs and black tri pad are for clamping hardwoods / MDF moulding.
info: the size (mm) refers to the height of the bungs.
Cassese p/n: z1783 - z1791 - z1800 - z1804 Elastomere Vert et Jaune, z1813 z1814 Presseur blanc et Noir

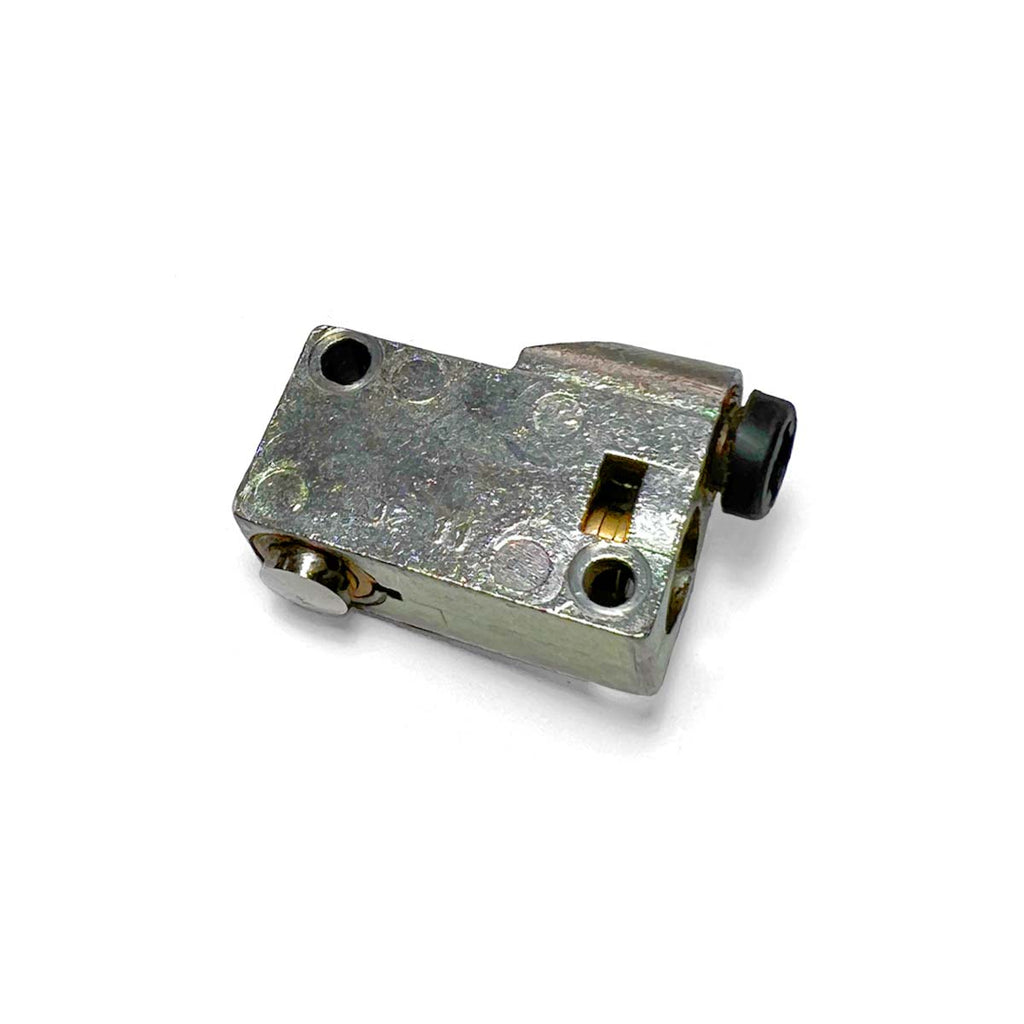

£13.44Limit switch valve that is fitted to the Cs2, Cs20, Cs200 and was also fitted to various parts of the Cs199mxl / Cs299mxl and who's functions included:
Cassese p/n's: z21609, z21605, z21612, z21425, z24071, z19898
Info: Cassese originally fitted the very cheap & nasty EMC branded switches to these underpinners which break/fail very easily, we only stock this higher quality alternate version.
